Aug. 07, 2025
PEX tube, often simply called PEX, has transformed residential and commercial plumbing over the past few decades. But what exactly is this flexible pipe that's increasingly replacing traditional copper and CPVC? This guide explains everything you need to know about cross-linked polyethylene tubing.
PEX Defined: The Core Material
PEX stands for cross-linked polyethylene. It's a flexible plastic tubing made from high-density polyethylene (HDPE) resin. The key differentiator is the cross-linking process. This creates permanent molecular bonds between the polymer chains, dramatically enhancing the material's properties compared to standard polyethylene:
Higher Temperature Resistance: Handles hot water effectively.
Greater Pressure Resistance: Withstands typical household water pressure.
Improved Chemical Resistance: Less prone to corrosion or scaling.
Enhanced Durability & Flexibility: Resists cracking and can bend around corners.
Why PEX Tube is So Popular: Key Advantages
Extreme Flexibility: PEX can bend easily around obstacles and through framing, significantly reducing the need for elbow fittings and complex joints. This translates to:
Faster Installation: Fewer fittings mean quicker pipe runs.
Lower Labor Costs: Reduced installation time saves money.
Fewer Potential Leak Points: Minimizing joints minimizes failure risks.
Freeze Resistance: While not freeze-proof, PEX is more forgiving than rigid pipes. It can expand slightly under freezing pressure and often contract back without bursting, reducing freeze-damage risks (though proper insulation is still crucial).
Corrosion & Scale Resistance: Unlike metal pipes (copper, steel), PEX is immune to corrosion from water chemistry or electrolysis. It also resists mineral scale buildup much better than copper, maintaining water flow over time.
Quieter Operation: PEX dampens water flow noise more effectively than rigid metal pipes, reducing the "water hammer" effect.
Cost-Effectiveness: PEX tubing itself is generally less expensive than copper, and the savings on fittings and labor further reduce overall project costs.
Longevity: When installed correctly and protected from UV light, PEX is expected to last 40-50 years or more, comparable to copper.
Understanding the Types of PEX: A, B, and C
Not all PEX is identical. The manufacturing process determines the degree of cross-linking and influences properties:
PEX-A: Made using the Peroxide (Engel) Method. Offers the highest degree of cross-linking.
Pros: Most flexible, best freeze resistance, allows expansion fittings (creating strong, sealant-free joints), superior memory (tries to return to original shape).
Cons: Generally the most expensive.
PEX-B: Made using the Silane (Moisture Cure) Method.
Pros: Most common and cost-effective, good balance of flexibility and durability, excellent chlorine resistance. Uses crimp/clamp fittings.
Cons: Slightly stiffer than PEX-A, less freeze resistance, no expansion capability.
PEX-C: Made using Electron Beam (Irradiation) Method.
Pros: Very rigid initially, often used for commercial radiant heat panels.
Cons: Least flexible, can be prone to kinking during installation if not careful, generally requires more fittings for bends. Less common for potable water plumbing than A or B.
Common PEX Tube Applications
Potable Water Supply Lines: Hot and cold water distribution throughout homes and buildings (most common use).
Radiant Floor Heating Systems: Flexible PEX is ideal for embedding in concrete or under subfloors to circulate warm water.
Hydronic Heating Systems: Distributing hot water to baseboards, radiators, or fan coils.
Snow Melting Systems: Embedded in driveways or walkways.
Service Lines: Connecting municipal water mains to buildings.
PEX Installation Methods & Fittings
PEX requires specific fittings and tools for secure connections:
Crimp: A copper or stainless steel ring is placed over the PEX, then a special crimp tool compresses it onto a barbed fitting. Requires a go/no-go gauge to verify tightness.
Clamp (Cinch): A stainless steel ring is positioned, and a cinch tool tightens it. Also requires verification.
Expansion (PEX-A primarily): An expansion tool stretches the PEX diameter. An expansion PEX fitting is inserted, and the PEX shrinks back to create a strong mechanical seal. Often considered the most reliable joint.
Push-to-Connect: Fittings (like SharkBite) allow tool-free installation by simply pushing the PEX tube into the fitting. Convenient for repairs but generally more expensive per fitting.
Important Considerations & Potential Drawbacks
UV Sensitivity: PEX degrades when exposed to prolonged sunlight. It must not be used outdoors or in areas with direct sun exposure unless specifically rated and protected.
Permeability: Oxygen can slowly diffuse through standard PEX walls, which can damage ferrous components (like cast iron boilers or radiators). Oxygen Barrier PEX (identified by an extra layer, often red or EVOH) is required for closed-loop heating systems.
Rodent Damage: In rare cases, rodents have been known to chew through PEX. Proper installation within protected walls/floors mitigates this risk.
Connection Integrity: While PEX itself is durable, leaks can occur at improperly installed fittings. Using the correct tools and following manufacturer instructions is critical.
Code Compliance: Always check local building codes for approved types (A/B/C), colors (hot/cold identification), and installation methods.
Is PEX Tube Safe for Drinking Water?
Yes, PEX tubing used for potable water is rigorously tested and certified to meet strict NSF/ANSI 61 standards for health effects. Look for this certification mark on the tubing. Modern PEX formulations have addressed earlier concerns about potential taste/odor issues.

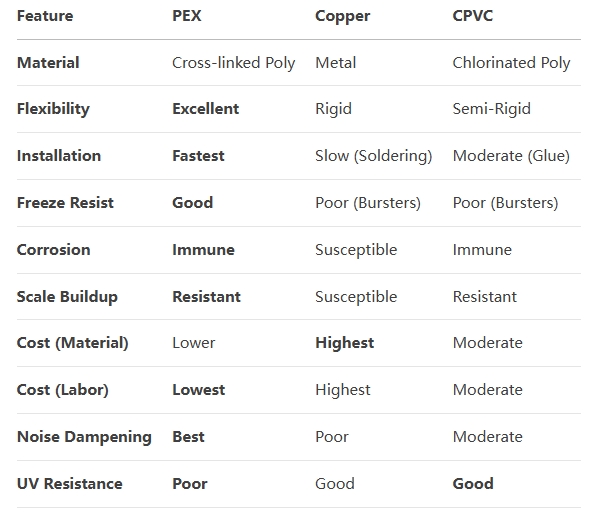

PEX vs. Copper & CPVC: A Quick Comparison
Conclusion: The Flexible Future of Plumbing
PEX tube represents a significant advancement in plumbing technology. Its flexibility, durability, freeze resistance, corrosion immunity, and cost-effectiveness make it an outstanding choice for a vast range of applications, from whole-house repipes to radiant floor heating. While considerations like UV protection and proper fitting installation are crucial, the benefits of PEX have solidified its position as a dominant and reliable material in modern plumbing systems. When you see that colorful (red, blue, white) tubing snaking through a building, you're looking at the practical and efficient solution that is PEX.
