PE-Xa Pipes for Plumbing & Underfloor Heating
Discover RITABLE PE-Xa piping solutions for residential, commercial and hydronic heating applications. From standard PE-Xa pipes to oxygen-barrier and multilayer options, our product range supports different system requirements, installation methods and project specifications.
Physical Characteristics
| Item | Unit | Index |
| Density | g/cm2 | ≥0.94 |
| Tensile Strength | N/Mm² | ≥19-26 |
| Elongation at break | % | ≥400 |
| Degree of Cross-linking | % | ≥70 |
| Vicat softening point | °C | 123 |
| Heat conductivity coefficient | W/m.k | 0.4 |
| Longitudinal recovery ratio | % | ≤3.0 |
| Aging of heat and oxidation resistance | Year | > 50 |
| Anti-static pressure property | % | |
| 20°C Ring Stress 12Mpa,1h | NO leakage NO cracking | |
| 95°C Ring Stress 4.8Mpa,1h | ||
| 95°C Ring Stress 4.7Mpa,22h | ||
| 95°C Ring Stress 4.6Mpa,165h | ||
| 95°C Ring Stress 4.4Mpa,1000h |
Designed for Reliable Piping Systems
•Flexible Installation — Designed to support practical pipe routing in heating and plumbing installations.
•Heat and Pressure Performance — Select the appropriate pipe specification according to system design and operating conditions.
•Corrosion Resistance — Polyethylene piping does not rust like conventional metal pipes.
•Multiple Pipe Options — Choose from standard PE-Xa, EVOH oxygen-barrier and other specialized constructions.
•Manufacturing Support — Discuss available sizes, colors, packaging and OEM/ODM requirements with our team.
Explore the PE-Xa Product Range

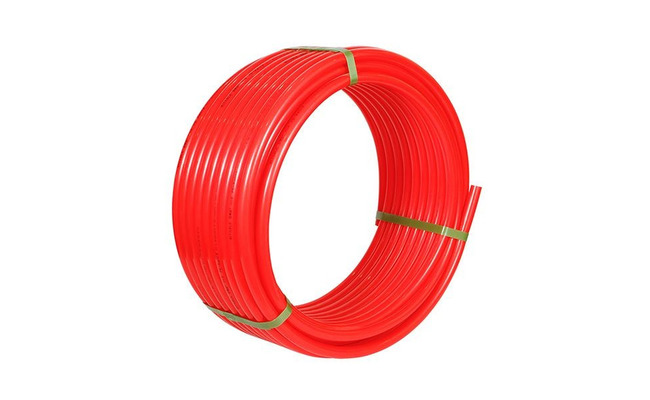

PE-Xa Pipe with EVOH Oxygen Barrier
Designed for heating systems where oxygen permeation control is an important consideration.

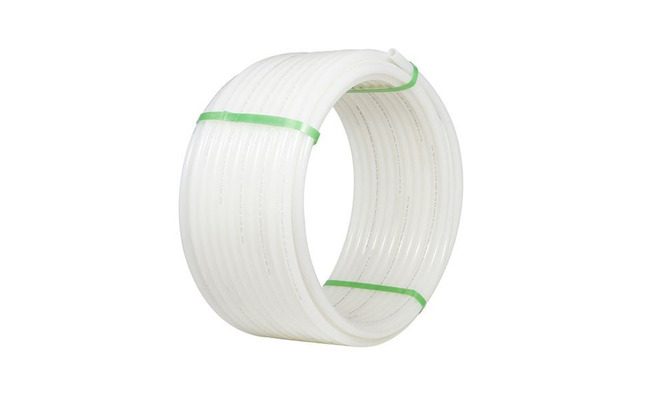

Natural Color PE-Xa Pipe
A versatile PE-Xa option for plumbing and heating applications, with available colors and sizes subject to product specifications.

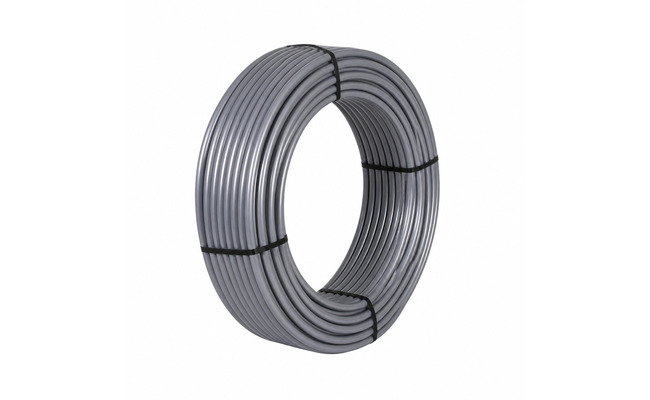

PE-Xa Pipe with Anti-UV Layer
Developed for projects requiring additional UV protection. Confirm the applicable exposure limits and installation conditions before selection.

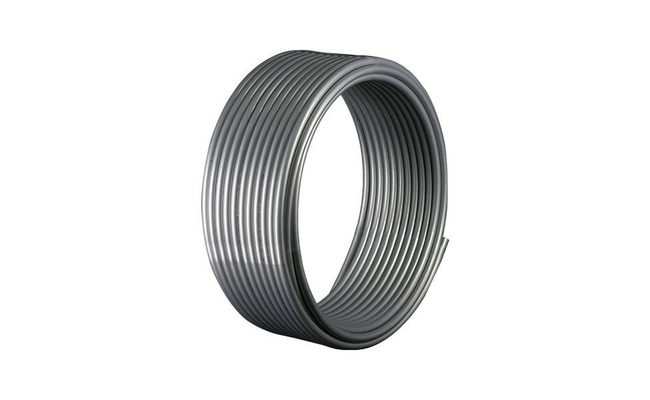

PE-Xa/Al/PE-RT Multilayer Pipe
A composite pipe option combining polymer layers with an aluminum core. Refer to its specific layer construction and technical data when evaluating system compatibility.
Applications of PE-Xa Pipes
•Piping Solutions for Heating and Water Distribution
•Underfloor Heating
•Hydronic Heating
•Hot and Cold Water Distribution, where approved
•Radiant Heating and Cooling, where system specifications permit
•Snow and Ice Melting, where the selected product is suitable
PE-Xa Pipe Manufacturing & Quality Control
Manufacturing Support for Global Customers
RITABLE supports piping projects with PE-Xa product options, manufacturing coordination and OEM/ODM customization discussions.
Our team can help you evaluate pipe construction, dimensions, color, product marking, packaging and applicable standards according to your target market and project requirements.
Frequently Asked Questions About PE-Xa Pipes
1. What Is PE-Xa Pipe Used For?
PE-Xa pipe is commonly used in underfloor heating and hydronic heating systems. Depending on its specifications, certifications and local requirements, it may also be suitable for hot and cold water distribution. Its flexible construction supports practical installation in residential, commercial and other compatible piping systems.
2. What Is the Difference Between Standard PE-Xa Pipe and PE-Xa Pipe with an EVOH Oxygen Barrier?
Standard PE-Xa pipe is made from peroxide-cross-linked polyethylene. PE-Xa pipe with an EVOH oxygen-barrier layer includes an additional layer designed to reduce oxygen permeation through the pipe wall. The EVOH option is particularly relevant for closed-loop hydronic heating systems where oxygen ingress needs to be controlled. The appropriate type depends on the system design and applicable requirements.
3. How Do I Choose the Right PE-Xa Pipe for My Project?
When selecting PE-Xa pipe, consider the application, outside diameter, wall thickness, operating temperature, working pressure, oxygen-barrier requirements and applicable standards. You should also check compatibility with the chosen fittings and installation method. RITABLE can help you review suitable product options based on your project specifications and target market.
4. Can RITABLE Provide OEM/ODM Customization for PE-Xa Pipes?
RITABLE supports OEM/ODM cooperation for eligible PE-Xa pipe products. Depending on the product and order requirements, available options may include pipe color, product marking, packaging and private-label branding. Please contact our team to confirm available specifications, minimum order quantities, customization options and lead times.
Request a PE-Xa Pipe Quote
Looking for a PE-Xa pipe supplier for your next project?
Tell us your required pipe type, dimensions, application, estimated quantity and destination market. Our team will help you identify a suitable product option and provide a quotation based on your requirements.
