PEX pipe has revolutionized plumbing and radiant heating systems, prized for its flexibility, durability, and corrosion resistance. But what exactly is PEX pipe made of? Understanding its core material composition is key to appreciating its performance and widespread adoption.
The Foundation: High-Density Polyethylene (HDPE)
At its heart, PEX pipe material starts with high-density polyethylene (HDPE) resin. HDPE is a versatile thermoplastic polymer known for its strength, chemical resistance, and affordability. It's commonly used in bottles, containers, and standard plastic pipes.
The Magic: Cross-Linking
The crucial step that transforms ordinary HDPE into PEX tubing is cross-linking. This chemical or physical process creates strong molecular bonds (cross-links) between the individual polyethylene chains. Imagine the polymer chains transforming from loose spaghetti strands into a tightly woven net.
Why Cross-Link? Cross-linking dramatically enhances the base HDPE properties:
Increased Temperature Resistance: PEX handles hot water far better than standard PE or CPVC, typically rated up to 200°F (93°C).
Greater Strength & Durability: Improved resistance to cracking, impact, and creep (deformation under pressure) over time.
Enhanced Chemical Resistance: Superior tolerance to common chemicals found in water and plumbing environments.
Improved Stress Crack Resistance: Vital for long-term reliability under pressure and temperature fluctuations.
Shape Memory (PEX-a): Especially with the Engel method, PEX-a can return to its original shape after bending, aiding installation.
Key Additives: Performance & Protection
Pure cross-linked polyethylene wouldn't be sufficient for long-term use in plumbing. PEX pipe composition includes carefully formulated additives:
Antioxidants: Protect the polymer from degradation caused by heat and oxygen exposure during manufacturing and service life, extending longevity.
Stabilizers: Help maintain the material's properties when exposed to chlorinated water or UV light (though PEX shouldn't be installed where exposed to direct sunlight).
Pigments: Provide color coding (common colors: Red for hot water, Blue for cold water, White for either/radiant heat, sometimes Gray). These are typically mineral-based pigments designed not to leach.
Processing Aids: Assist in the smooth and consistent manufacturing of the pipe.
Manufacturing Methods & PEX Types
The cross-linking process defines the common types of PEX pipe (PEX-a, PEX-b, PEX-c), each with slightly different properties:
PEX-a (Engel Method): Uses peroxide during extrusion under high heat and pressure. Highest degree of cross-linking (typically >85%), most flexible, best shape memory.
PEX-b (Silane Method): Extruded pipe is passed through a hot water bath where a silane compound triggers cross-linking. Slightly less flexible than PEX-a but very common and cost-effective.
PEX-c (Electron Beam Method): Finished HDPE pipe is bombarded with electron radiation to create cross-links. Offers high purity and good flexibility.
Safety & Quality Assurance
Reputable PEX pipe manufacturers adhere to strict international standards to ensure safety for potable water:
NSF/ANSI 61: Certifies the material is safe for contact with drinking water, ensuring additives don't leach harmful contaminants.
ASTM F876 / F877: Define the standard specifications for PEX tubing, covering dimensions, performance requirements (pressure ratings, burst strength), and material properties.
Third-Party Certification: Look for marks from NSF, IAPMO, UL, or CSA on the pipe.

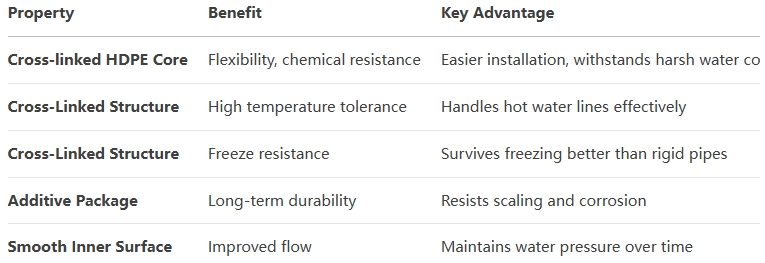

PEX Pipe Material Benefits Summary:
Conclusion: Engineered for Performance
So, what is PEX made of? PEX pipe is fundamentally composed of cross-linked high-density polyethylene (HDPE) resin, enhanced with critical additives like antioxidants and stabilizers. The cross-linking process is the transformative step that elevates basic polyethylene into a robust, flexible, and heat-resistant material ideally suited for demanding plumbing and heating applications. Understanding this PEX material composition highlights why it offers such significant advantages over traditional metal pipes and other plastics like PVC or CPVC. When choosing PEX, always ensure it carries the appropriate certifications (like NSF/ANSI 61) for safe use with drinking water. Its unique blend of material science and engineering makes PEX a cornerstone of modern piping systems.
