PEX-A Expansion Fittings: The Gold Standard for Reliable, Leak-Free Piping Connections

　　In the world of modern plumbing and radiant heating, PEX tubing has revolutionized installations. Among its types, PEX-A stands out, particularly when paired with its signature connection method: Expansion Fittings. This combination isn't just popular; it's often considered the pinnacle of performance and reliability for demanding applications. Let's explore why PEX-A expansion fittings deserve their reputation as the gold standard.

　　Understanding the Core: PEX-A Tubing

　　PEX-A (cross-linked polyethylene, type A) is manufactured using the Engel method. This process creates tubing with the highest degree of cross-linking (typically around 85%), resulting in exceptional properties:

　　Superior Flexibility: PEX-A is incredibly pliable, even in cold weather. It kinks less readily than other types and can often be straightened if a minor kink occurs.

　　Molecular Memory: This is the key to the expansion fitting system. When PEX-A is stretched, it actively wants to return to its original size and shape.

　　Highest Resistance to Slow Crack Growth: Crucial for long-term durability under pressure and stress.

　　Freeze Resistance: While no pipe is truly "freeze-proof," PEX-A's flexibility allows it to expand significantly if water inside freezes, greatly reducing the chance of bursting compared to rigid pipes.

　　The Magic of Expansion Fitting Technology

　　The expansion method leverages PEX-A's unique molecular memory. Here's how it works:

　　Expand: A specialized expansion tool (manual, battery-powered, or electric) stretches the end of the PEX-A tubing radially, temporarily increasing its diameter.

　　Insert: While the tubing is expanded, a PEX ring (typically made of tough, durable polymer like EPDM or similar) is slipped over the expanded end and seated against the tubing's shoulder. Then, the expanded tubing end is quickly pushed onto a brass or polymer fitting (elbow, tee, valve, coupling). The fitting has barbs or ridges slightly larger than the tubing's original internal diameter.

　　Contract: Within seconds, the stretched PEX-A tubing powerfully contracts back towards its original size (thanks to molecular memory). This creates an incredibly strong, uniform, compressive force:

　　The tubing grips the fitting's barbs tightly.

　　The PEX ring, now trapped between the contracted tubing and the fitting body, acts as a secondary, robust seal.

　　Why PEX-A Expansion Fittings Dominate for Performance:

　　Unmatched Reliability & Leak Resistance: The cold expansion/contraction process creates a true mechanical joint and a seal. The uniform pressure minimizes stress points, virtually eliminating the weak spots common with compression or clamp rings. It's widely regarded as the most leak-proof PEX connection method.

　　Full Flow: Unlike crimp or clamp methods where a metal ring encircles the outside of the tubing, potentially slightly reducing internal diameter, expansion fittings connect inside the tubing. The fitting itself is the only restriction, meaning maximum flow rate through the system. The PEX ring sits externally, not impeding flow.

　　Ideal for Freeze-Prone Areas: The combination of PEX-A's inherent freeze tolerance and the expansion joint's ability to handle dimensional changes makes these systems exceptionally resilient in cold climates.

　　Strongest Grip: The contraction force creates a powerful mechanical bond between the tubing and the fitting barbs, resistant to pull-out forces.

　　Visual Verification: Proper installation results in a visible "bump" where the PEX ring is seated against the fitting shoulder, providing a clear indicator of a correct connection.

　　No Brass Fittings Inside Water Path (Common): Many expansion systems use fittings where the sealing surface is polymer (like PPSU), meaning no brass is in contact with the water. This is beneficial for water quality and avoids potential dezincification concerns with some brass alloys (though lead-free brass is also widely used successfully).

　　Speed & Consistency (with Power Tools): Using a quality power expansion tool allows for very rapid, consistent, and reliable connections, significantly speeding up installation time compared to some other methods once the technique is mastered.

　　Applications Where PEX-A Expansion Shines:

　　Potable Water Systems: Especially in critical applications or areas with freeze risk.

　　Radiant Floor Heating: Reliability and flow are paramount; expansion is the preferred choice for many professional installers.

　　Snow Melt Systems: Demanding freeze-thaw cycles make expansion fittings ideal.

　　Commercial Plumbing: Where long-term reliability and reduced callbacks are crucial.

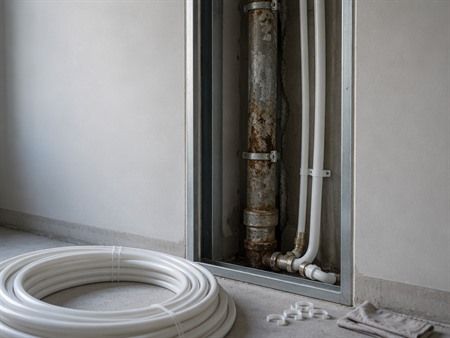

　　Retrofits: Flexibility helps navigate tight spaces.

　　Important Considerations:

　　Tool Investment: Proper expansion requires a specific tool. While manual tools exist, professional installers heavily favor efficient power expansion tools (like those from Uponor, the primary innovator, or other brands like Milwaukee, DeWalt, Ridgid).

　　Tubing Compatibility: Expansion fittings are specifically designed for PEX-A tubing. Do not use them with PEX-B or PEX-C.

　　Ring Compatibility: Use rings specifically designed for the expansion system and fitting brand you are using.

　　Training: Proper technique (expansion depth, speed of insertion) is essential for a perfect joint. Training resources are widely available from manufacturers.

　　Conclusion: The Performance Benchmark

　　PEX-A expansion fittings represent more than just a connection method; they represent a system built on superior material science and engineered for ultimate performance. While requiring an initial tool investment, the payoff in unparalleled reliability, leak resistance, full flow, and freeze resilience makes them the top choice for discerning plumbers, hydronic heating professionals, and homeowners seeking the absolute best for their piping systems. When failure is not an option, PEX-A expansion fittings deliver the peace of mind that comes with truly robust, long-lasting connections.
