The claim, and the question behind it "50 years" appears on almost every PE-Xa datasheet. It is worth asking what it actually rests on — because no manufacturer has been testing pipe for 50 years. The answer is a defined engineering method, and it is worth knowing how to check it.
1. What the 50-year figure actually means It is not a stopwatch result. It is a predicted service life at a defined temperature and pressure, derived from accelerated testing and extrapolated according to the relevant standard. Change the operating conditions and the prediction changes. That is why a credible datasheet always states the life figure together with the temperature and pressure it applies to.

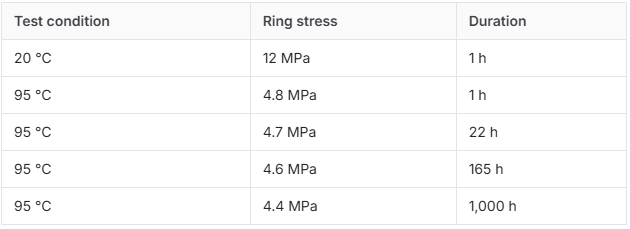

2. How the prediction is built: the ring-stress ladder Long-term behaviour is established by holding pipe specimens under constant hoop (ring) stress at elevated temperature and measuring time to failure. Ritable's published PE-Xa data follows this ladder:
The logic: at 95 °C the material is stressed far beyond normal service conditions. The way failure time responds as stress is reduced — 1 h, 22 h, 165 h, 1,000 h — defines the material's regression curve. The 50-year figure is read off that curve, not measured directly. The same principle underpins ISO 15875, to which Ritable PE-Xa pipe is manufactured, alongside ASTM 876.

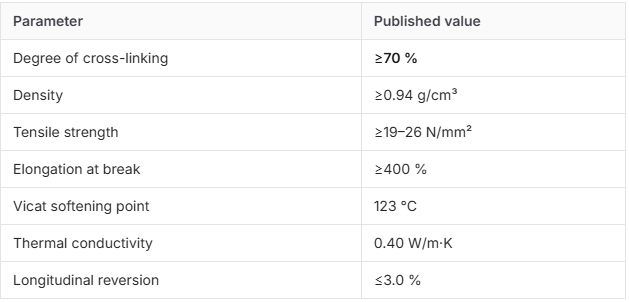

3. The material parameters that make the extrapolation valid Extrapolation is only as good as the material behind it. The parameters Ritable publishes for PE-Xa:
The degree of cross-linking is the critical one. Cross-linking is what converts polyethylene from a material that softens and creeps into one that holds its shape under sustained stress — and the uniform molecular network of the peroxide (PE-Xa) method is why the properties stay stable over time rather than concentrating at the surface.
4. Independent verification, not just self-declaration Self-reported numbers should be checked against third-party certification. Ritable's PE-Xa pipes hold an ECM Certificate of Compliance (No. 3C220509.HROUN92), verified to ISO 15875, ISO 22391, ISO 15874 and ISO 4427 under CE Directive 305/2011 (Construction Products Regulation), valid to 08 May 2027. The certified diameter range for PE-Xa and PE-Xa/EVOH pipe is 16–160 mm. The product pages also list CE, GOST (Russian certification) and WaterMark (Australian certification) for the relevant variants — worth confirming against your specific market requirement before you specify.
5. What the 50-year claim does NOT cover This is the part datasheets usually omit. The prediction assumes rated conditions are respected:
Temperature and pressure within rating. Exceed them and the extrapolation no longer applies.
Water quality. Aggressive water chemistry attacks any system, from the inside.
Installation quality. A pipe that lasts 50 years can be destroyed in an afternoon by a badly made joint or an over-tight bend radius.
UV exposure. Standard PE-Xa is not designed for permanent sunlight — that is what the anti-UV variant is for.
Oxygen ingress in heating circuits, which is a system problem rather than a pipe problem — addressed by the EVOH barrier layer.
6. Five questions to ask any supplier
Under what temperature and pressure is the service-life figure defined?
Is the ring-stress test data published, or only the conclusion?
What is the measured degree of cross-linking — and how is it verified?
Which certificate covers the product, and is it current?
Does the certified diameter range include the size you are buying?
A 50-year claim is only as strong as the data behind it. Ask for the data. Our PE-Xa series — including natural colour pipe — is supplied with full technical documentation.
