Oct. 20, 2025
If you're building a new home, renovating your bathroom, or simply dealing with a plumbing repair, you've likely encountered the term "PEX." It has become a dominant material in the plumbing world, largely replacing traditional copper and CPVC in many applications.
But what exactly is PEX water pipe, and why has it become so popular?
This comprehensive guide will explain everything you need to know about PEX piping, from its composition and types to its pros, cons, and common uses.
Table of Contents
1、What is PEX Pipe?
2、The Different Types of PEX: PEX-A, PEX-B, and PEX-C
3、Key Advantages of Using PEX
4、Potential Disadvantages of PEX
5、Common Applications for PEX Piping
6、PEX Installation Methods
7、PEX vs. Copper and CPVC
8、Frequently Asked Questions (FAQ)
1. What is PEX Pipe?
PEX, or Cross-linked Polyethylene, is a flexible plastic tubing used primarily for potable water plumbing and hydronic heating systems. The "cross-linking" is a chemical or physical process that creates strong molecular bonds between the polyethylene polymers. This process dramatically improves the material's performance under temperature and pressure, making it durable enough for long-term use with hot and cold water.
2. The Different Types of PEX: PEX-A, PEX-B, and PEX-C
Not all PEX is created equal. The main differences lie in the manufacturing process, which affects the pipe's flexibility and cost.
PEX-A: This is the most flexible type of PEX, made using the Engel method. Its high flexibility allows it to be stretched, which is useful for making expansion-style fittings. It is highly resistant to kinking and is considered the top-tier option, but it is also the most expensive.
PEX-B: Made using the Silane method, PEX-B is stiffer than PEX-A and has a slightly lower cross-linking density. It is a very popular and cost-effective option, offering an excellent balance of performance and price. It is often recognized by its "memory," meaning it will try to return to its original coiled shape.
PEX-C: Created using the Electron Beam method, PEX-C is the stiffest of the three and can be more prone to kinking during installation if not handled carefully. It is less common than PEX-A and PEX-B.
For most residential applications, all three types are perfectly acceptable and meet the same ASTM standards for safety and performance.
3. Key Advantages of Using PEX
PEX's rise in popularity is no accident. It offers significant benefits over older plumbing materials:
Flexibility: PEX can bend around corners, significantly reducing the number of fittings and connections required. This simplifies installation and lowers the risk of leaks.
Corrosion Resistance: Unlike copper, PEX does not corrode from exposure to water or minerals, preventing pinhole leaks and preserving water quality.
Scale Resistance: The smooth interior surface of PEX minimizes mineral buildup (scale), which can restrict water flow over time.
Freeze Resistance: PEX is more forgiving if water inside it freezes. It can expand, making it less likely to burst compared to rigid copper or CPVC pipes.
Cost-Effective: PEX tubing and its associated fittings are generally less expensive than copper. Combined with faster installation times, this leads to significant cost savings.
Quiet Operation: PEX absorbs the sound of water flow better than copper, resulting in a quieter plumbing system.
Color-Coded: PEX is often available in red (for hot water), blue (for cold water), and white or gray (for either), making identification easy during installation.
4. Potential Disadvantages of PEX
While excellent, PEX is not perfect. Consider these points:
UV Sensitivity: PEX cannot be exposed to direct sunlight for prolonged periods, as UV rays degrade the material and cause it to fail. It is strictly for indoor or underground use.
Not Recyclable: As a plastic material, PEX is currently not easily recyclable through standard municipal programs.
Potential for Permeability: Some types of PEX can be permeable to certain substances, meaning it should not be run underground in areas with chemical contamination. Always check local codes.
5. Common Applications for PEX Piping
Potable Water Supply Lines: The most common use, for both hot and cold water throughout a house.
Manifold Systems ("Home Run" Plumbing): PEX is ideal for this efficient system where individual lines run from a central manifold to each fixture, allowing for easy control and balanced pressure.
Radiant Floor Heating: PEX is the standard tubing used in hydronic radiant floor heating systems due to its flexibility and durability.
Snow Melting Systems: Heated fluid is pumped through PEX tubes embedded in driveways and walkways.
Service Line Repairs: Its flexibility makes it perfect for snaking through walls to replace short sections of old pipe.
6. PEX Installation Methods
PEX requires special connection methods, which are generally quicker than soldering copper:
Crimp Fittings: A copper ring is placed over the pipe, which is then crimped tightly around a fitting using a special tool.
Clamp (Cinch) Fittings: A stainless steel ring is compressed with a cinch tool, creating a secure seal.
Expansion Fittings: The pipe is expanded using a special tool, a fitting is inserted, and the pipe shrinks back to form a very strong, reliable seal. This method is most common with PEX-A.
Important: Always use the correct tool and fittings recommended by the PEX manufacturer.

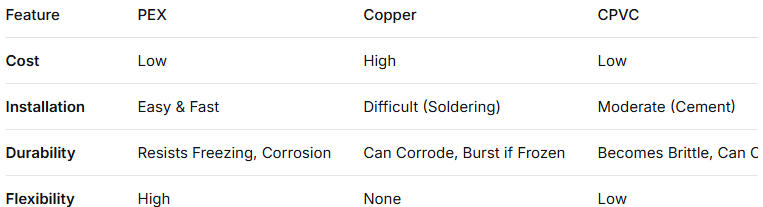

7. PEX vs. Copper and CPVC
8. Frequently Asked Questions (FAQ)
Q: Is PEX safe for drinking water?
A: Yes, modern PEX tubing is certified by organizations like NSF International to meet strict safety standards for potable water. Early formulations had issues with taste, but this has been resolved in current products.
Q: How long does PEX pipe last?
A: PEX piping is expected to last 50+ years when installed correctly and protected from UV exposure.
Q: Can I use PEX for my main water line?
A: Absolutely. PEX is an excellent and durable choice for main water service lines, especially due to its freeze resistance.
Q: Can I connect PEX to my existing copper pipes?
A: Yes, transition fittings are readily available to connect PEX to copper, CPVC, or PVC.
