Mar. 12, 2026
In the modern world of plumbing, few innovations have been as transformative as Cross-Linked Polyethylene (PEX) piping. However, a piping system is only as strong as its connections. When discussing high-end, reliable connections for PEX pipe, one term stands out: PPSU fittings.
If you are a plumber, contractor, or homeowner planning a renovation, understanding PPSU fittings is crucial for ensuring a leak-free, durable plumbing system. This guide will explain what PPSU fittings are, why they are superior to other materials, and how they integrate with PEX pipe systems.
Defining PPSU: The Material Science
PPSU stands for Polyphenylsulfone. It belongs to the family of high-performance amorphous polymers, often referred to by the brand name Radel®.
In the context of plumbing, PPSU is a thermoplastic that is engineered to withstand extreme conditions. Unlike metals, it does not corrode. Unlike other plastics, it maintains its structural integrity under high heat and pressure.
Key Properties of PPSU Material:
Amorphous Structure: This gives it exceptional dimensional stability. It won't warp or deform easily under stress.
High Heat Deflection Temperature: It can handle continuous hot water temperatures without softening.
Inherently Flame Retardant: While not usually a factor inside walls, this speaks to the material's robust chemical makeup.
The Advantages of PPSU Fittings for PEX Systems
When connecting PEX pipe, installers typically choose between metal (brass or copper) and polymer fittings. PPSU has emerged as a premium choice for several specific reasons.
1. 100% Corrosion Resistance
Standard metal fittings can be subject to corrosion, dezincification (in brass), and pitting over time. This can lead to pinhole leaks and eventual failure. PPSU is completely inert. It will not react with acidic or alkaline water, minerals, or common plumbing chemicals. This ensures that the fitting itself will last as long as the building itself.
2. Chlorine and Chemical Resistance
PEX pipes often carry treated municipal water, which contains chlorine. While PEX is chlorine-resistant, the fitting must be as well. PPSU offers excellent resistance to chlorine and other disinfectants, ensuring the fitting point doesn't become the "weak link" in the system.
3. Scale Resistance
Hard water causes limescale buildup inside metal fittings, which can eventually restrict water flow. Because PPSU is naturally smooth and slick, mineral deposits struggle to adhere to its surface. This maintains the full inner diameter of the fitting and preserves water pressure over the long term.
4. Lightweight and Easy Handling
A box of PPSU fittings is significantly lighter than a box of brass fittings. For contractors working on multi-story buildings or long workdays, this reduces fatigue and makes the installation process faster.
How PPSU Fittings Work with PEX Pipe
PPSU fittings are almost exclusively used in cold expansion (ASTM F1960) or press-fit (ASTM F1807) systems, though they are most famous for their role in expansion fitting technology.
The Expansion Method (ASTM F1960)
This is the gold standard for PPSU fittings.
The installer uses an expansion tool to stretch the PEX pipe (usually PEX-a).
The PPSU fitting, which has a slightly larger barbed diameter than the pipe's resting size, is inserted into the expanded pipe.
As the PEX pipe shrinks back to its original size, it creates a permanent, compressive "memory fit" around the PPSU fitting.
An expansion ring (either plastic or metal) is often placed over the pipe to reinforce the connection.
Because PPSU is strong enough to withstand the compressive force of the shrinking PEX without deforming, it is the ideal material for this type of connection.

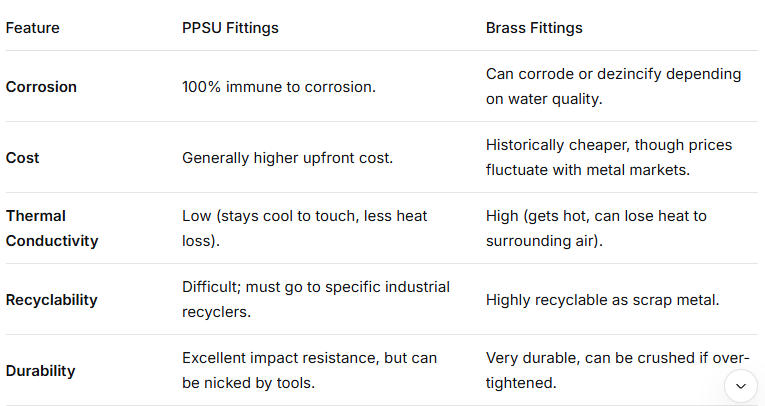

PPSU vs. Brass: Which is Better?
This is the most common debate in PEX fittings. Here is a quick comparison:
The Verdict: For high-end residential and commercial projects where water quality is aggressive or longevity is the priority, PPSU is often the superior choice.
Applications of PPSU Fittings
Because of their reliability, PPSU fittings are used in:
Potable Water Systems: Safe for drinking water, certified to NSF/ANSI 61 and 14.
Radiant Heating Systems: Their ability to withstand high temperatures makes them perfect for in-floor heating loops.
Hydronic Piping: Used in baseboards and panel radiators.
Ice-Making Lines: Their resistance to bursting in cold environments is a plus.
Installation Best Practices
To ensure your PPSU fittings perform correctly, follow these tips:
Inspect the O-Ring: Most PPSU fittings utilize a stainless steel grab ring and an O-ring seal. Ensure the O-ring is seated properly and free of debris before insertion.
Use the Correct Tools: Whether you are using a crimp tool or an expansion tool, ensure it is calibrated correctly for the size of the PPSU fitting.
Cut the Pipe Square: A crooked cut can prevent the pipe from seating fully against the internal shoulder of the fitting, leading to potential leaks.
Conclusion
A PPSU fitting represents the intersection of material science and plumbing efficiency. By choosing PPSU connectors for your PEX piping, you are investing in a connection that is chemically resistant, corrosion-proof, and designed for the lifetime of the building.
While the initial material cost may be higher than traditional metals, the reduction in service callbacks and the guarantee of long-term reliability make PPSU the fitting of choice for professionals who demand the best.
