The Ultimate Guide to PEX Water Pipe Manifolds: Efficiency & Control for Modern Plumbing

　　If you're planning a new construction project, a major renovation, or simply looking to upgrade your home's plumbing for better performance, you've likely encountered the term "PEX water pipe manifold." This central distribution hub is revolutionizing residential and commercial plumbing systems. But what exactly is it, and why is it becoming the gold standard? This comprehensive guide will explain everything you need to know.

　　What is a PEX Water Pipe Manifold?

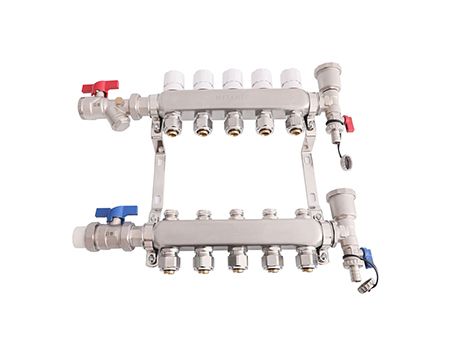

　　A PEX water pipe manifold is the control center of a home-run plumbing system. Imagine it as the heart of your water distribution network. It's a single, central panel—typically made of brass, copper, or engineered polymer—that receives the main hot and cold water supply lines. From this panel, individual PEX tubes (cross-linked polyethylene pipes) run directly to each plumbing fixture—like sinks, toilets, showers, and appliances—without any intermediate splices or fittings.

　　This "home-run" design is a significant departure from traditional trunk-and-branch systems, where a main line snakes through the house with smaller lines teeing off to serve multiple fixtures. The manifold system offers unparalleled control, efficiency, and reliability.

　　How Does a PEX Manifold System Work?

　　The principle is elegantly simple:

　　Main Supply: The primary hot and cold water lines from your water heater and main shutoff enter the manifold.

　　Central Distribution: The manifold features multiple outlet ports, each equipped with its own dedicated shut-off valve.

　　Dedicated Lines: A single, continuous PEX tube runs from an outlet port on the manifold directly to one specific fixture (e.g., the kitchen faucet or the master shower).

　　Isolated Control: Each valve allows you to control or shut off the water supply to its corresponding fixture independently, without affecting any other fixture in the house.

　　Key Advantages of a PEX Manifold Plumbing System

　　1. Superior Pressure Balance and Performance

　　With dedicated lines, fixtures operate independently. This means flushing a toilet or starting a washing machine will not cause a sudden drop in water pressure or temperature at your shower—a common annoyance in traditional systems.

　　2. Reduced Leak Points

　　Traditional systems have numerous tees, elbows, and joints hidden inside walls, each a potential failure point. The home-run manifold system minimizes joints by using long, continuous PEX runs, dramatically reducing the risk of leaks.

　　3. Easy Maintenance and Future Upgrades

　　Need to work on a sink? Simply turn off the corresponding valve at the manifold. No need to shut off water to the entire house. Labeled valves make identification easy, and adding a new fixture in the future is straightforward by connecting to an unused manifold port.

　　4. Energy and Water Efficiency

　　The dedicated hot water line to each fixture is typically smaller in diameter, meaning less stagnant water sits in the pipes. You get hot water faster, wasting less water and energy down the drain.

　　5. Quieter Operation

　　PEX material dampens water flow noise, and the elimination of water hammer caused by pressure surges in branch systems makes for a much quieter plumbing system.

　　Installation Considerations for a PEX Manifold

　　Location: The manifold is usually installed in an accessible, central utility area like a basement, mechanical room, or laundry room. This central location helps ensure relatively equal PEX run lengths.

　　Sizing: Manifolds come with varying numbers of outlets (e.g., 4, 8, 12, 16 ports). Choose one with extra ports to allow for future expansion.

　　Professional vs. DIY: While experienced DIYers can install PEX, designing and installing a balanced manifold system often benefits from a professional plumber's expertise to ensure optimal performance and code compliance.

　　Conclusion: Is a PEX Manifold System Right for You?

　　The PEX water pipe manifold system represents a smarter approach to modern plumbing. It delivers consistent water pressure, enhances control, improves efficiency, and provides long-term reliability. While the initial material cost may be slightly higher than traditional plumbing, the benefits in performance, peace of mind, and potential savings on future repairs make it an outstanding investment for any new build or whole-house replumb.

　　For your next project, consult with a qualified plumbing professional about incorporating a PEX manifold. It’s the definitive way to build a resilient, high-performance water distribution system for your home.
