Mar. 13, 2025
PEX piping has revolutionized plumbing systems with its flexibility, durability, and cost-effectiveness. A critical component of any PEX installation is selecting the right PEX pipe fitting types. Whether you’re a DIY enthusiast or a professional plumber, understanding the different fittings ensures leak-free connections and optimal system performance. In this guide, we’ll explore the most common PEX fittings, their applications, and how to choose the best option for your project.
Why PEX Pipe Fittings Matter
PEX fittings connect pipes to fixtures, valves, or other pipes, creating secure joints in water supply, radiant heating, and irrigation systems. The right fitting type ensures longevity, prevents leaks, and maintains water pressure. Let’s dive into the key types of PEX pipe fittings and their uses.
1. Crimp Fittings
Keywords: PEX crimp fittings, crimp ring connections
Crimp fittings are the most widely used PEX connectors. They consist of a brass or copper sleeve and a metal ring. A specialized crimping tool compresses the ring onto the pipe and fitting, creating a watertight seal.
Pros:
Affordable and readily available.
Compatible with all PEX tubing types (A, B, and C).
Ideal for tight spaces due to compact design.
Cons:
Requires a crimping tool.
Not reusable once installed.
Best For: Residential plumbing repairs and new installations.
2. Clamp (Cinch) Fittings
Keywords: PEX clamp fittings, stainless steel clamps
Clamp fittings use stainless steel rings and a cinching tool to secure the connection. Like crimp fittings, they work with all PEX tubing but are slightly easier to inspect visually.
Pros:
Visual verification of a proper seal.
Resistant to corrosion.
Suitable for both hot and cold water lines.
Cons:
Requires a cinching tool.
Slightly bulkier than crimp fittings.
Best For: DIY projects and areas with high humidity.
3. Push-to-Connect Fittings
Keywords: PEX push-to-connect fittings
Push-to-connect fittings are the ultimate solution for quick, tool-free installations. These fittings feature a stainless steel grip ring and O-ring that seals when the pipe is inserted.
Pros:
No specialized tools required.
Reusable and easy to disconnect.
Compatible with multiple pipe materials (PEX, copper, CPVC).
Cons:
Higher cost per fitting.
Bulkier design may not suit tight spaces.
Best For: Emergency repairs, temporary setups, or retrofit projects.

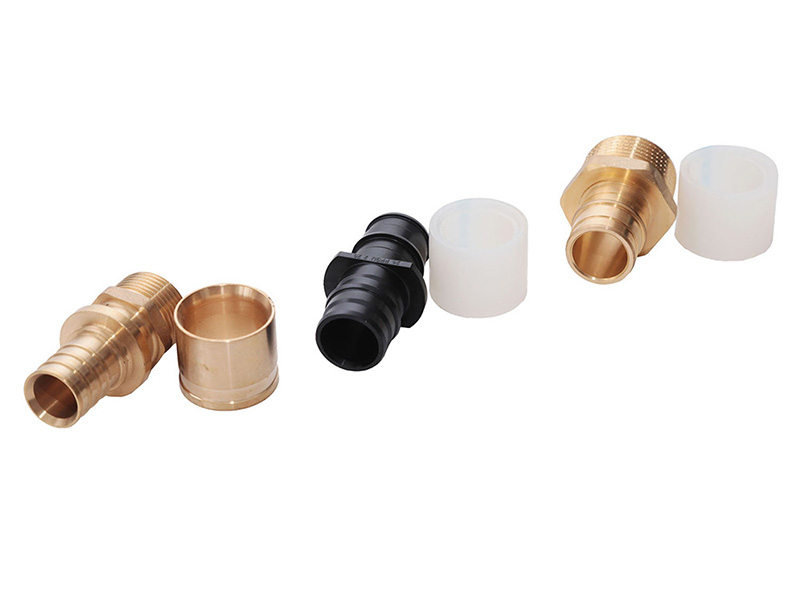

4. Expansion Fittings
Keywords: PEX expansion fittings, cold expansion method

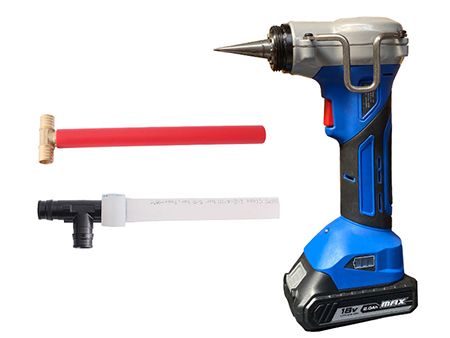

Expansion fittings require a unique tool to stretch the PEX tubing before inserting the fitting. As the pipe contracts, it creates a tight seal around the fitting.
Pros:
Creates the strongest bond for PEX-A tubing.
Ideal for high-pressure applications.
Reduces flow restriction due to full inner diameter.
Cons:
Requires an expensive expansion tool.
Works best with PEX-A (not recommended for PEX-B or C).
Best For: Commercial plumbing, radiant floor heating, and large-scale systems.
5. Threaded Fittings
Keywords: PEX threaded adapters, male/female threaded fittings
Threaded fittings connect PEX pipes to fixtures, valves, or metal pipes. They come in male or female threads and often include a brass body for durability.
Pros:
Simplifies transitions between PEX and existing plumbing.
Reusable and easy to install with Teflon tape.
Available in NPT (National Pipe Thread) and BSPT standards.
Cons:
Potential for leaks if threads aren’t properly sealed.
Higher cost compared to basic crimp fittings.
Best For: Connecting PEX to water heaters, showers, or outdoor spigots.
Choosing the Right PEX Fitting for Your Project
When selecting PEX pipe fitting types, consider these factors:
Tubing Type: PEX-A works best with expansion fittings, while PEX-B/C pairs well with crimp or clamp fittings.
Application: High-pressure systems demand expansion or threaded fittings, while push-to-connect suits quick fixes.
