The Complete Guide to PEX-AL-PEX Pipe: Benefits, Applications, and Installation

　　PEX-AL-PEX pipe, also known as multilayer or composite pipe, represents a significant innovation in modern plumbing and heating systems. Combining the flexibility of cross-linked polyethylene (PEX) with the strength of an aluminum core, this pipe offers unique advantages for residential, commercial, and industrial applications. This comprehensive guide explores everything you need to know about PEX-AL-PEX piping systems.

　　What is PEX-AL-PEX Pipe?

　　PEX-AL-PEX pipe is a composite material consisting of three distinct layers:

　　An inner layer of PEX plastic for excellent fluid compatibility

　　A middle layer of welded aluminum tubing providing structural strength

　　An outer layer of PEX plastic for protection and insulation

　　This multilayer construction creates a pipe that maintains the corrosion resistance and flexibility of plastic piping while gaining the durability, oxygen barrier properties, and dimensional stability of metal piping.

　　Key Advantages of PEX-AL-PEX Piping

　　1. Superior Durability and Strength

　　The aluminum core provides exceptional mechanical strength, making PEX-AL-PEX pipes resistant to impact damage during and after installation. They can withstand higher pressures compared to standard PEX pipes, typically rated for continuous operation at 200 PSI at 73°F.

　　2. Excellent Oxygen Barrier

　　The aluminum layer acts as a complete oxygen diffusion barrier, preventing oxygen from penetrating into closed heating systems. This crucial feature protects ferrous components (like boilers, radiators, and pumps) from corrosion, extending system lifespan significantly.

　　3. Thermal Stability and Low Expansion

　　PEX-AL-PEX pipes exhibit minimal thermal expansion—approximately 1/6th that of all-plastic pipes. This reduces stress on fittings and supports, minimizing the "water hammer" effect and allowing for longer straight runs without expansion loops.

　　4. Flexibility with Shape Retention

　　Unlike pure metal pipes, PEX-AL-PEX maintains flexibility while holding its shape when bent. This "coil memory" allows for neat installations with fewer supports and makes retrofits in existing structures considerably easier.

　　5. Chemical and Corrosion Resistance

　　The inner PEX layer is highly resistant to scale buildup and corrosion from aggressive water conditions, ensuring consistent flow rates and water quality over decades of service.

　　Common Applications

　　Radiant Heating Systems

　　PEX-AL-PEX is particularly popular for underfloor, wall, and ceiling radiant heating installations. Its oxygen barrier properties protect system components, while its flexibility simplifies installation in complex patterns.

　　Potable Water Distribution

　　Increasingly used for domestic hot and cold water supply lines, especially in multi-story buildings where its strength and low expansion properties are advantageous.

　　Snow Melting Systems

　　The durability and thermal efficiency make it ideal for embedded snow melting systems in driveways, walkways, and parking areas.

　　Commercial Hydronic Systems

　　Often specified for baseboard heating, fan coils, and other commercial heating applications where long-term reliability is critical.

　　Chilled Water Cooling Systems

　　Suitable for cooling applications in both residential and commercial buildings.

　　Installation Guidelines

　　Tools and Materials Required

　　Pipe cutters (preferably rotary cutters for clean, square ends)

　　Calibration/deburring tool

　　Press fitting tools or expansion tools (system dependent)

　　Appropriate fittings (compatible with the specific PEX-AL-PEX system)

　　Step-by-Step Installation Process

　　Planning and Measurement: Account for thermal expansion (minimal but present) and follow local plumbing codes.

　　Cutting: Use sharp, dedicated cutters to ensure clean, square cuts without distorting the pipe layers.

　　Deburring and Calibration: Remove any inner and outer burrs and calibrate the pipe end to ensure proper fitting engagement.

　　Fitting Connection:

　　For press systems: Slide the fitting into the pipe and use a calibrated pressing tool.

　　For expansion systems: Expand the pipe end and insert the fitting, allowing it to shrink back securely.

　　Support and Securing: Use appropriate hangers and supports, typically every 32 inches on horizontal runs and every 10 feet on vertical runs.

　　Pressure Testing: Always pressure test the system before concealing pipes, following applicable codes and standards.

　　Important Considerations

　　Use only manufacturer-recommended fittings and tools

　　Avoid excessive bending beyond the manufacturer's specified minimum bend radius

　　Protect pipes from UV exposure during storage and before enclosure

　　Maintain proper clearance from heat sources

　　Follow local plumbing codes and regulations

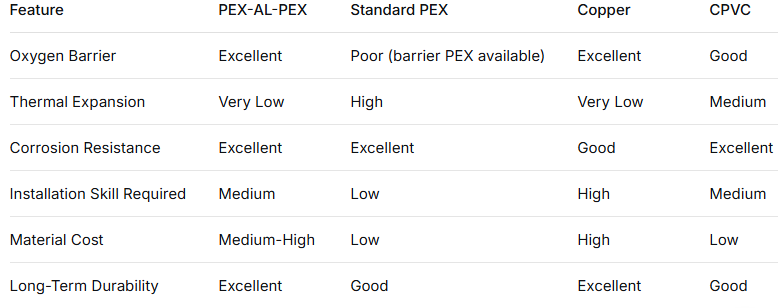

　　Comparison with Alternative Piping Materials

　　Maintenance and Lifespan

　　Properly installed PEX-AL-PEX systems typically have a service life exceeding 50 years with minimal maintenance. The composite structure resists both internal and external degradation. For heating systems, regular checks of pressure and water quality are recommended, but the pipes themselves require no specific maintenance.

　　Industry Standards and Certifications

　　Reputable PEX-AL-PEX pipes carry certifications from:

　　NSF/ANSI 61 for drinking water safety

　　ASTM F1281 and F2262 standards

　　European standards EN 1746 and EN 1775

　　Local plumbing code approvals

　　Always verify that products meet the specific standards required for your region and application.

　　Conclusion

　　PEX-AL-PEX pipe offers a compelling combination of flexibility, durability, and performance that bridges the gap between traditional metal and plastic piping systems. Its multilayer construction addresses many limitations of single-material pipes, making it particularly valuable for hydronic heating applications and demanding plumbing installations.

　　When selecting PEX-AL-PEX piping, ensure you choose products from reputable manufacturers with proper certifications, use compatible tools and fittings, and follow installation best practices. When these conditions are met, PEX-AL-PEX systems provide reliable, long-lasting performance that justifies their initial investment through reduced maintenance, energy efficiency, and system longevity.

　　For your next plumbing or heating project, consider whether the unique advantages of PEX-AL-PEX multilayer pipe align with your requirements for strength, oxygen barrier properties, and installation efficiency.
