PEX-AL-PEX piping represents a significant advancement in plumbing and heating technology, combining the flexibility of cross-linked polyethylene with the strength of aluminum. This innovative composite material has revolutionized fluid transport systems in residential, commercial, and industrial applications. As Google prioritizes comprehensive, authoritative content, this guide provides original, in-depth information about PEX-AL-PEX technology, its advantages, applications, and installation considerations.
What is PEX-AL-PEX?
PEX-AL-PEX is a multilayer pipe consisting of five distinct layers:
Inner layer: PEX (cross-linked polyethylene)
First adhesive layer
Middle layer: Aluminum
Second adhesive layer
Outer layer: PEX
This sandwich construction creates a pipe that combines the corrosion resistance and flexibility of plastic with the dimensional stability and oxygen barrier properties of metal. The aluminum layer, typically comprising about 15-20% of the wall thickness, provides structural reinforcement while preventing oxygen diffusion into hydronic heating systems.
Technical Advantages of PEX-AL-PEX Piping
1. Superior Durability and Longevity
PEX-AL-PEX pipes demonstrate exceptional resistance to common piping issues:
Thermal expansion: 6-7 times lower than standard PEX pipes
UV resistance: The outer PEX layer protects against ultraviolet degradation
Chlorine resistance: Withstands aggressive water conditions better than many alternatives
Temperature tolerance: Operates effectively from -40°C to +95°C continuously
2. Excellent Oxygen Barrier Properties
The aluminum layer creates a 100% effective oxygen diffusion barrier with permeability of 0%. This is crucial for:
Preventing system corrosion in heating applications
Extending the lifespan of boilers, radiators, and pumps
Maintaining system efficiency over decades
3. Flexibility with Memory
Unlike metal pipes, PEX-AL-PEX can be bent by hand without special tools, yet it maintains its shape once positioned. This "memory" characteristic simplifies installation while ensuring professional-looking results.

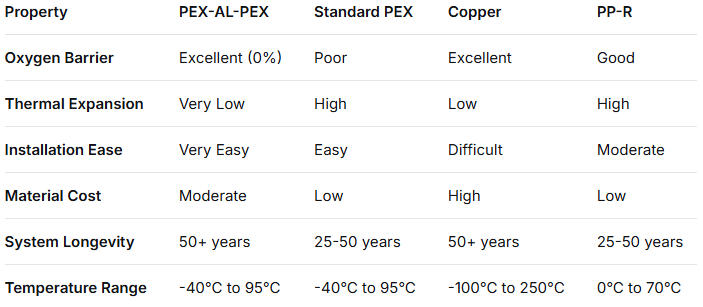

Comparative Analysis: PEX-AL-PEX vs. Alternative Materials
Applications of PEX-AL-PEX Technology
Residential Applications
Radiant floor heating systems: The low thermal expansion ensures stable performance
Domestic hot and cold water supply: Corrosion-free operation with minimal scaling
Snow melting systems: Reliable performance in extreme temperature variations
HVAC applications: Efficient heat transfer with reduced energy losses
Commercial and Industrial Applications
District heating connections: Superior oxygen barrier protects large systems
Industrial process piping: Chemical resistance with dimensional stability
Solar thermal systems: Handles temperature fluctuations effectively
Compressed air lines: The aluminum layer provides necessary rigidity
Installation Best Practices
1. Bending and Support Requirements
Minimum bending radius: 5 times the pipe diameter
Support spacing: 750mm for horizontal runs, 1000mm for vertical runs
Use proper bending tools to avoid kinking the aluminum layer
2. Connection Methods
PEX-AL-PEX requires specialized fittings:
Compression fittings: Most common, providing reliable metal-to-metal connections
Press fittings: Quick installation with professional tools
Expansion fittings: Create the most consistent inner diameter
3. Important Considerations
Always use pipe inserts to prevent compression damage
Avoid exposure to direct sunlight for extended periods
Use proper insulation in outdoor or below-grade applications
Follow manufacturer specifications for temperature and pressure ratings
Market Trends and Future Outlook
The global PEX-AL-PEX market is experiencing significant growth, driven by:
Increased adoption in green building projects
Replacement of aging metal piping infrastructure
Growth in radiant heating markets worldwide
Stringent building codes requiring oxygen barrier piping
Industry projections suggest 6.8% CAGR through 2028, with particular strength in North American and European renovation markets.
Environmental Impact and Sustainability
PEX-AL-PEX contributes to sustainable construction through:
Energy efficiency: Reduced heat loss compared to metal pipes
Long service life: Minimizes replacement frequency and material consumption
Recyclability: Aluminum layer can be separated and recycled
Reduced installation energy: Lower embodied energy compared to copper systems
Conclusion
PEX-AL-PEX represents the convergence of polymer flexibility and metal stability, creating a piping solution that addresses the limitations of both material types. Its unique five-layer structure provides technical advantages that make it suitable for demanding applications while maintaining installation simplicity. As building codes evolve and performance expectations increase, PEX-AL-PEX technology continues to gain market share across multiple sectors.
For architects, engineers, contractors, and homeowners, understanding PEX-AL-PEX properties and proper installation methods ensures optimal system performance and longevity. As with any specialized material, working with certified installers and following manufacturer guidelines remains essential for achieving the full benefits of this advanced composite piping technology.
