How to Join PPR Pipe

　　Polypropylene Random Copolymer (PPR) pipes have become a global standard for hot and cold water supply systems due to their durability, corrosion resistance, and long lifespan. Unlike PVC or metal pipes, PPR pipes are joined using a heat fusion process called socket welding. This method creates a homogenous, monolithic joint that is stronger than the pipe itself—but only if done correctly.

　　In this guide, we’ll walk you through the exact process of how to join PPR pipe, the tools you’ll need, and the critical mistakes to avoid to ensure a leak-free, code-compliant installation.

　　Tools and Materials Required

　　Before starting, gather the following:

　　PPR pipes and fittings (ensure they are from the same brand and material class—PN10, PN20, or PN25)

　　PPR welding machine (also called a heat fusion tool or socket welder)

　　Pipe cutter (scissor-type or ratchet cutter for clean, square cuts)

　　Deburring tool (to remove burrs and chamfer the pipe edge)

　　Measuring tape and marker pen

　　Isopropyl alcohol or a clean, lint-free cloth for cleaning

　　Step 1: Cut the Pipe Squarely

　　Use a PPR pipe cutter to make a clean, perpendicular cut. An angled or jagged cut reduces the contact area inside the fitting, compromising the seal.

　　Pro tip: Mark the cutting line around the pipe circumference to maintain straightness.

　　Step 2: Deburr and Chamfer

　　After cutting, use a deburring tool to remove any burrs from the inner and outer edges. Then, chamfer the outer edge of the pipe at a 15–20° angle.

　　Why this matters: The chamfer prevents the pipe from scraping the inner wall of the fitting during insertion, which could create cold spots or weak points in the fusion.

　　Step 3: Clean the Surfaces

　　Dust, grease, or moisture can compromise the fusion. Wipe the pipe end and the inside of the fitting with isopropyl alcohol. Allow them to dry completely.

　　Important: Do not touch the cleaned surfaces with bare hands—oil from skin can interfere with the fusion.

　　Step 4: Mark the Insertion Depth

　　Measure the socket depth of the fitting using the depth gauge on your welding machine or a ruler. Mark this depth on the pipe with a marker.

　　Why: This ensures you insert the pipe fully without pushing too far, which could create internal ridges that restrict flow.

　　Step 5: Set Up the Welding Machine

　　Place the welding machine on a stable surface. Install the correct die set (heating bushings) that matches your pipe diameter. Turn the machine on and set the temperature to 260°C (500°F) —the standard fusion temperature for PPR.

　　Wait: Do not proceed until the machine reaches operating temperature and the green indicator light (or temperature display) shows stability.

　　Step 6: Heat Simultaneously

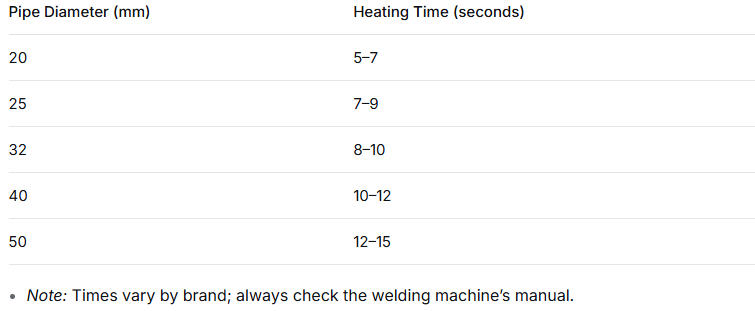

　　Place the pipe and fitting onto the heating dies simultaneously. Push them straight in—do not rotate. Follow the heating time specified by the manufacturer based on the pipe diameter.

　　Step 7: Join Immediately

　　After the heating time, remove both components from the dies. Quickly and firmly push the pipe into the fitting in a single, straight motion until the pipe reaches the marked depth.

　　Do not rotate during or after insertion—this can weaken the bond.

　　Hold the joint steady for 5–10 seconds to allow the material to set. Movement during cooling creates stress points.

　　Step 8: Cool Naturally

　　Allow the joint to cool undisturbed. The cooling time should be roughly twice the heating time. Do not use water or any external cooling method—rapid cooling makes the joint brittle.

　　Common Mistakes That Cause Leaks

　　Using mismatched brands or materials – Not all PPR pipes have the same fusion properties. Always use compatible components.

　　Overheating – Excessive heat causes the material to sag internally, reducing flow and weakening the joint.

　　Rotating during fusion – Rotating disrupts the molecular bonding process.

　　Insufficient insertion – If the pipe is not fully inserted, the joint will fail under pressure.

　　Welding in cold or windy conditions – Low ambient temperatures accelerate cooling; use a tent or increase heating time slightly if working below 5°C (41°F).

　　Testing the System

　　After completing all joints, perform a pressure test before burying or concealing the pipes. Fill the system with water, vent all air, and pressurize to 1.5 times the working pressure (but not exceeding the pipe’s rated pressure). Hold for at least 30 minutes and inspect each joint for leaks.

　　Conclusion

　　Learning how to join PPR pipe correctly is essential for any reliable plumbing or hydronic heating system. The process itself is straightforward—cut, clean, heat, join, and cool—but precision and adherence to timing are non-negotiable. A properly fused PPR joint will outlast the building around it, while a poorly executed one can lead to costly failures.

　　By following these steps and respecting the material’s requirements, you can achieve professional-grade results that meet international standards and pass rigorous inspections.
